2.1-inch TFT circular LCD display module customized circular smart watch LCD screen

Shenzhen Tianxianwei Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 2.1-inch TFT circular LCD display module customized circular smart watch LCD screen from wholesalers

    Buy cheap 2.1-inch TFT circular LCD display module customized circular smart watch LCD screen from wholesalers
    • Buy cheap 2.1-inch TFT circular LCD display module customized circular smart watch LCD screen from wholesalers
    • Buy cheap 2.1-inch TFT circular LCD display module customized circular smart watch LCD screen from wholesalers
    • Buy cheap 2.1-inch TFT circular LCD display module customized circular smart watch LCD screen from wholesalers

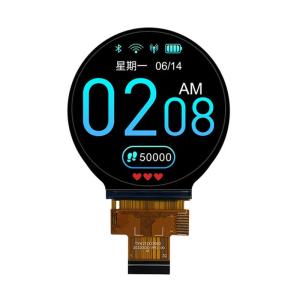

    2.1-inch TFT circular LCD display module customized circular smart watch LCD screen

    Ask Lasest Price
    Brand Name : TXWEI
    Model Number : TXW210006B0
    Certification : CE ROHS FCC
    Price : negotiate
    Delivery Time : 16
    Payment Terms : L/C TT D/P
    Supply Ability : 10000pcs
    • Product Details
    • Company Profile

    2.1-inch TFT circular LCD display module customized circular smart watch LCD screen

    2.1-inch round full-color TFT LCD display customized round lcd display

    Product Description:

    Round TFT LCD Product Overview

    TXW210006B0 is a 2.1-inch circular full-color TFT LCD display screen with a resolution of 480 * 480, IPS full view high-definition high brightness display effect, wide temperature range of -20+70 working temperature, and brightness of 450cd/m².


    Drive Element: TFT Active Matrix

    The Round TFT LCD features a TFT Active Matrix drive element, which is a type of thin-film transistor technology that enhances the display's image quality and performance. This allows for faster response times, higher resolution, and improved color accuracy, providing users with a more immersive viewing experience.


    Lumens Degrees: 450cd/m²

    The Round TFT LCD has a luminance of 450cd/m², making it one of the brightest displays in its class. This high level of brightness ensures that the display is easily readable in any lighting condition, whether indoors or outdoors. It also offers excellent visibility and clarity, making it perfect for displaying detailed graphics and images.


    Viewing Direction: ALL O’CLOCK

    The Round TFT LCD offers a 360-degree viewing direction, allowing users to view the display from any angle without any distortion or loss of image quality. This makes it a versatile display solution that can be used in various orientations and positions, providing users with a seamless viewing experience.


    Mechanical Outline Size (W*H*T): 56.18*59.71*2.2

    The Round TFT LCD has a compact and slim design with a mechanical outline size of 56.18*59.71*2.2mm. This makes it a perfect fit for small devices, without compromising on the display size. Its sleek and modern design also adds a touch of elegance to any device it is used in.


    In conclusion, the Round TFT LCD is a highly advanced and versatile display solution that offers a combination of top-notch features, including a TFT Active Matrix drive element, high luminance, 360-degree viewing direction, compact size, and high pixel density. With its superior performance and sleek design, the Round TFT LCD is the perfect display solution for various applications, making it a must-have for any cutting-edge device.


    This product is widely used in smart home appliances, smart remote controls, smart rotary switches, children's education, medical equipment, automotive intelligent interconnection and other products.


    Features:


    • Product Name: Round TFT LCD
    • LCM interface: MIPI BIT Interface
    • Active area: Φ53.28
    • LCD Type: Normally Black
    • Lumens degrees: 450cd/m²
    • Model Number: TXW210006B0
    • Shape: Circular
    • Display Technology: Thin Film Transistor (TFT)
    • Resolution: High definition
    • Color Depth: 18-bit
    • Viewing Angle: 178 degrees
    • Brightness: 450cd/m²
    • Contrast Ratio: High
    • Backlight Type: LED
    • Touch Screen: Optional

    Technical Parameters:


    ITEMSandard valueUnit
    Model NumberTXW210006B0
    size2.1Inch
    LCD TypeNormally black--
    Drive elementTFT active matrix--
    Number of pixels480*3RGB(H)X480(V)Dots
    Pixel arrangementRGB stripe--
    Pixel Pitch (W*H)0.111*0.111mm
    Active areaΦ53.28mm
    Mechanical OutlineSize(W*H*T)71.8*71.8*3.58
    Mechanical OutlineSize(W*H*T)56.18*59.71*2.2mm
    Viewing directionALL O’CLOCK-
    LCM Driver ICST7701S-
    LCM interfaceMIPI BIT Interface-
    Lcm pin n count30
    Backlight leds4pcs
    Backlight current80mA
    Backligh voltage2.8-3.3v
    operating temperature-20+70
    storage temperature-30+80
    Lumens degrees450cd/㎡

    Applications:

    Circular TFT LCD - TXWEI

    Round TFT LCD, also known as circular TFT LCD or circular TFT LCD display, is a revolutionary product from TXWEI. With its unique shape and advanced technology, it has a wide range of applications in various industries and scenarios.


    Product Description

    Brand Name: TXWEI
    Model Number: TXW210006B0
    Place of Origin: Guangdong, China
    Certification: CE ROHS FCC
    Minimum Order Quantity: negotiate
    Price: negotiate
    Packaging Details: cardboard
    Delivery Time: 16
    Payment Terms: L/C TT D/P
    Supply Ability: 10000pcs
    Pixel arrangement: RGB Stripe
    Viewing direction: ALL O’CLOCK
    Mechanical OutlineSize(W*H*T): 56.18*59.71*2.2
    Operating temperature: -20+70
    IC/LCM Driver IC: ST7701S


    Application Scenarios


    1. Wearable Devices
    Circular TFT LCD is perfect for wearable devices such as smartwatches, fitness trackers, and smart glasses. Its compact size and unique shape make it ideal for displaying information and notifications in a visually appealing way.

    2. Automotive Industry
    The circular TFT LCD can be used in car dashboards, head-up displays, and rearview mirrors. Its high resolution and wide viewing angle provide drivers with clear and accurate information, enhancing their driving experience and safety.

    3. Smart Home Systems
    With the circular TFT LCD, homeowners can easily control and monitor their smart home systems, such as lighting, temperature, and security, through a central control panel. Its touch screen feature allows for a seamless and user-friendly experience.

    4. Gaming and Entertainment
    Circular TFT LCD is also suitable for gaming and entertainment devices, such as handheld gaming consoles, virtual reality headsets, and portable media players. Its high refresh rate and vibrant colors provide an immersive and enjoyable experience for users.

    Product Features

    1. Circular Design
    The round shape of the TFT LCD makes it stand out from traditional rectangular screens, adding a touch of uniqueness and modernity to any device.

    2. High Resolution
    With a pixel arrangement of RGB Stripe, the circular TFT LCD offers a high resolution for sharp and clear images and videos.

    3. Wide Viewing Angle
    The viewing direction of ALL O’CLOCK ensures that the screen can be viewed from any angle, providing a comfortable viewing experience for users.

    4. Versatile Temperature Range
    Operating at temperatures between -20 to +70 degrees, the circular TFT LCD can withstand extreme weather conditions, making it suitable for both indoor and outdoor use.

    5. Reliable and Durable
    The ST7701S IC/LCM driver IC ensures stable performance and long lifespan of the circular TFT LCD, making it a reliable and durable choice for various applications.


    Conclusion

    In conclusion, the Round TFT LCD by TXWEI is a versatile and innovative product that can be applied in various industries and scenarios, thanks to its unique circular design, high resolution, wide viewing angle, and reliable performance. Its advanced technology and excellent features make it a popular choice for manufacturers and consumers alike. Choose TXWEI's Round TFT LCD for your next project and experience the difference it brings to your devices.
