IPS TFT LCD Screen 10.1 Inch FHD RGB Display Touch Screen Product Introduction

10.1-inch FHD RGB monitor typically refers to a liquid crystal display with a 1024*600 full HD resolution, featuring a 10.1-inch IPS TFT LCD panel and an enhanced display interface (RGB). Here are some key product features and parameters of TXW100076B0-XL:

Panel type: IPS TFT LCD, providing a wide viewing angle and color accuracy.
Resolution: 1024*600 pixels, also known as Full HD (FHD) resolution, providing clear image details.
Brightness: The brightness of different models may vary, but it is generally around 700cd/m ², suitable for various usage environments.
Contrast ratio: 800:1, providing excellent light and dark detail representation.
Viewing angle: IPS technology provides a viewing angle of nearly 180 °, allowing color and contrast to be maintained from different angles.
Response time: usually around 30ms, sufficient for non professional graphic applications.
Color gamut: Covering 72% of NTSC color gamut, capable of displaying rich colors.
Interface: RGB interface, supporting 50 pin terminal connection, providing high-speed data transmission.
Backlight type: WLED backlight, providing uniform brightness and longer lifespan.
Working temperature: generally ranging from -20 to 70 ° C, suitable for various environmental conditions.
Capacitive Touchscreen: Offering capacitive touch screen functionality, supporting multi touch. allowing users to interact through touch. Capacitive touch screens have the characteristics of high transparency and fast response, making them suitable for applications that require direct interaction.

Mechanical Specifications

Product Drawing

TFT DC Characteristics

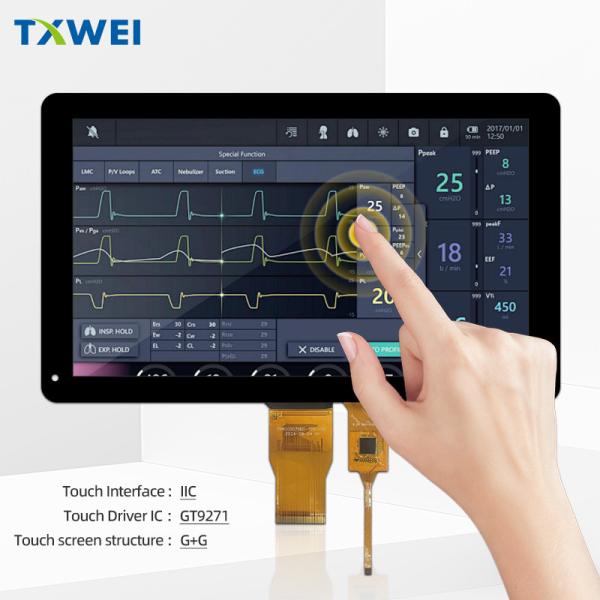

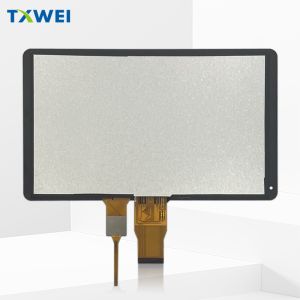

Product Image
